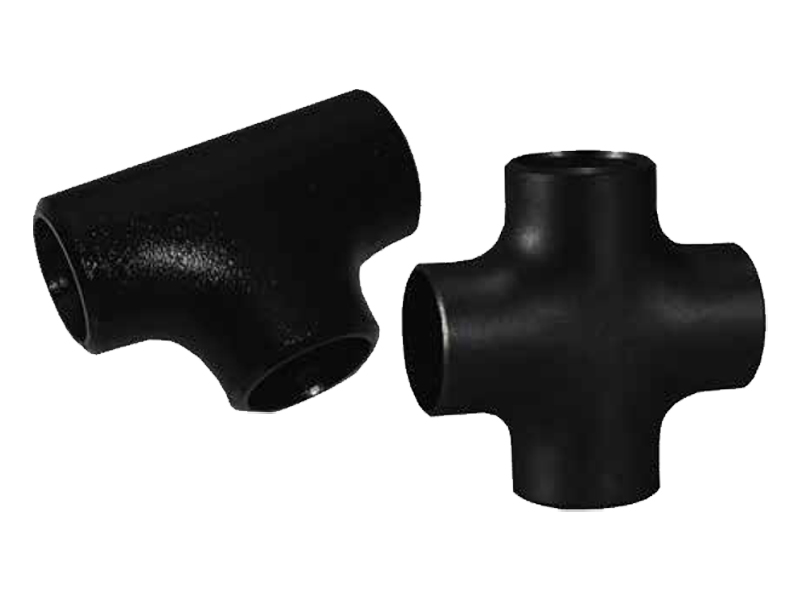

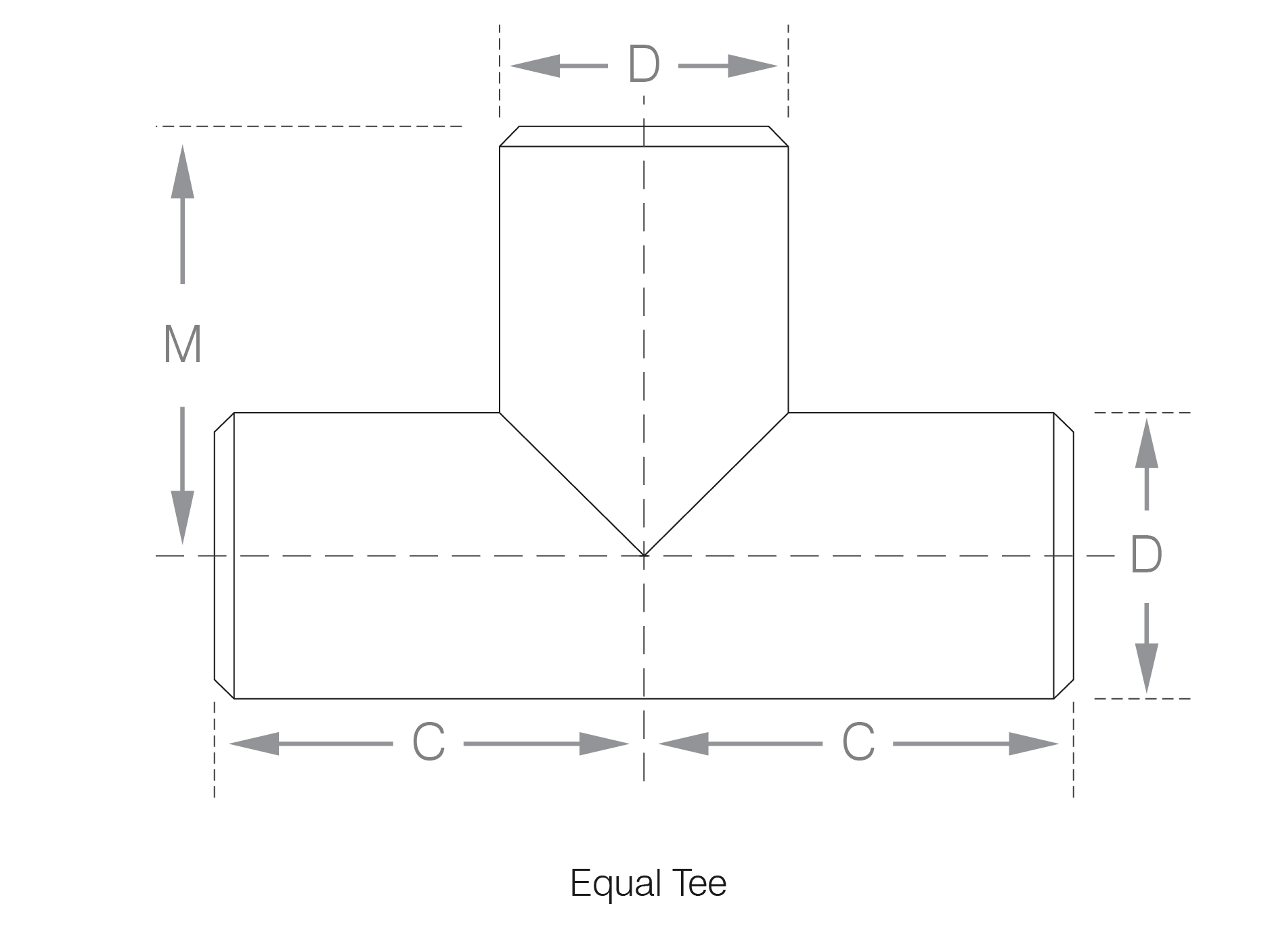

Model (Equal): SD-BET
The function of a tee is to permit flow at 90° to the main direction of flow. The main flow passes through the ‘run’ while the 90° outlet is known as the ‘branch’. The equal tee is manufactured with all three outlets being the same size.

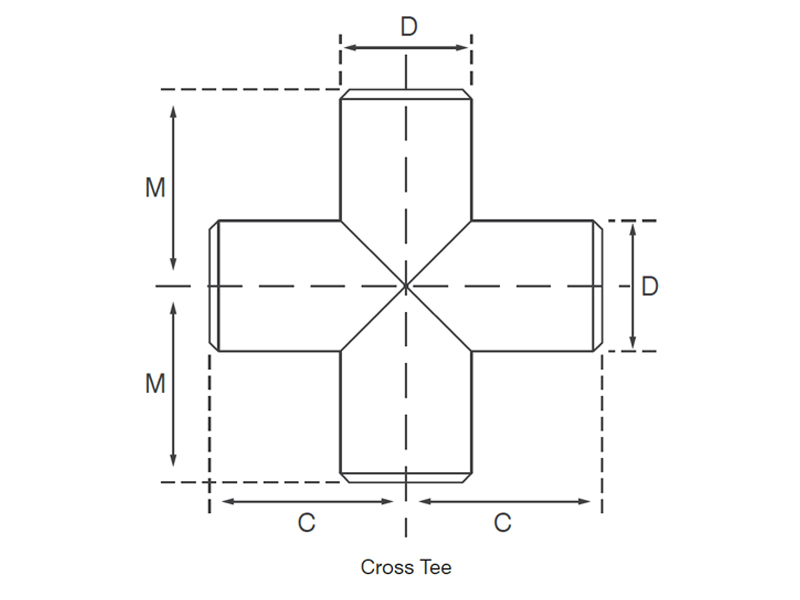

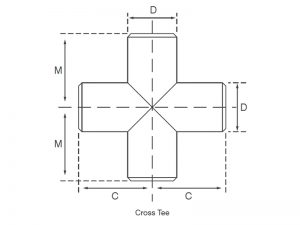

Model (Cross): SD-BCT
The function of a cross is similar to that of equal tee with the exception of providing two 90° outlets opposite each other. Equal crosses have all four outlets of equal size.
Butt-welded fittings are used in a piping system for changing direction, branching and to mechanically joined to the system. A piping system using Butt-welded fittings has many inherent advantages over other forms. Butt-welded fittings are used widely in high pressure and high temperature application.
Material

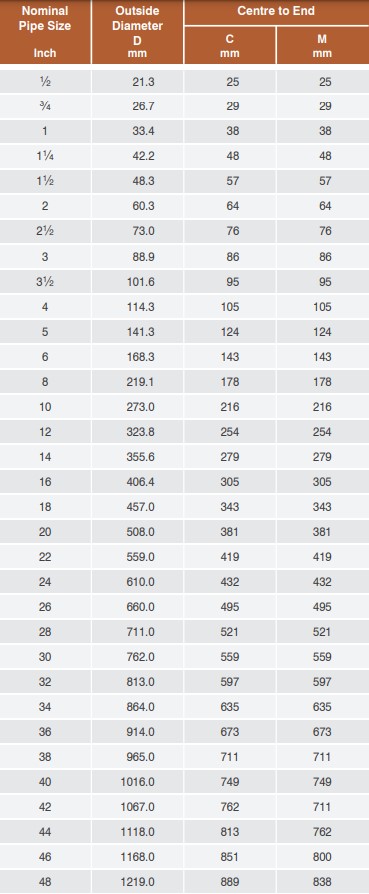

Dimensions
Note: SHIELD reserves the right to change the contents without notice.
