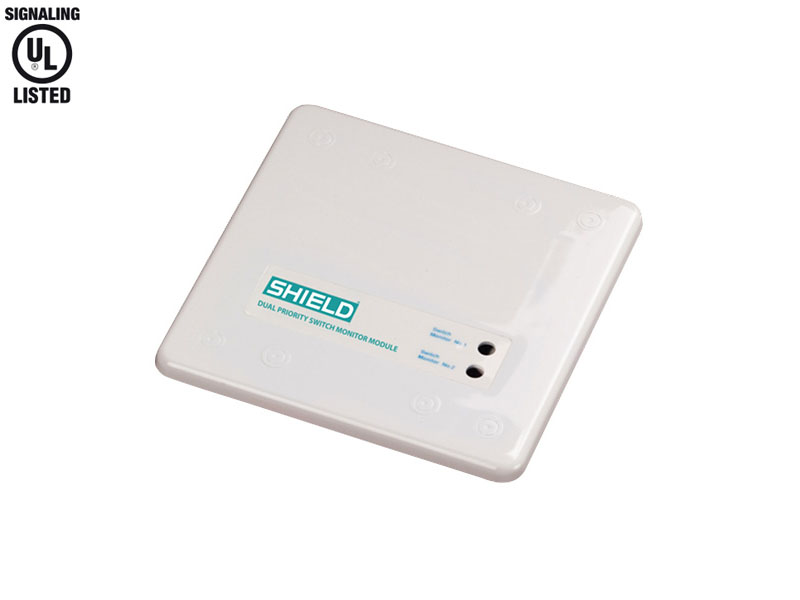

      Dual Priority Switch Monitor Module

        SHIELD Dual Priority Switch Monitor Module contains two Priority Switch Monitor Modules on a single plate.

        Click here to download the catalogue

        SHIELD Dual Priority Switch Monitor Module contains two Priority Switch Monitor Modules on a single plate.

        Click here to download the catalogue

        Features

        • Loop-powered
        • Fast response time
        • Interrupt facility

        Specification

        Type Dual Priority Switch Monitor Module
        Style Fascia Plate With Wiring Terminals
        Temperature Range 0°C to 49°C
        Wiring Size 24 AWG – 14 AWG
        Signal Line Circuit (SLC) Supervised Power Limited
        Working Voltage 17 – 28 V DC
        Modulation Voltage 5 – 9 V DC (peak to peak)
        Operating Current Supervisory Current 1.1 mA
        Surge Current 2.5 mA
        Maximum Alarm Current 7.8 mA (LED on)
        Functional States Analog Level (normal) 16
        Analog Level (alarm) 64
        Analog Level (trouble) 4
        Dimensions (L x W x D) 114 mm x 114 mm x 25 mm
