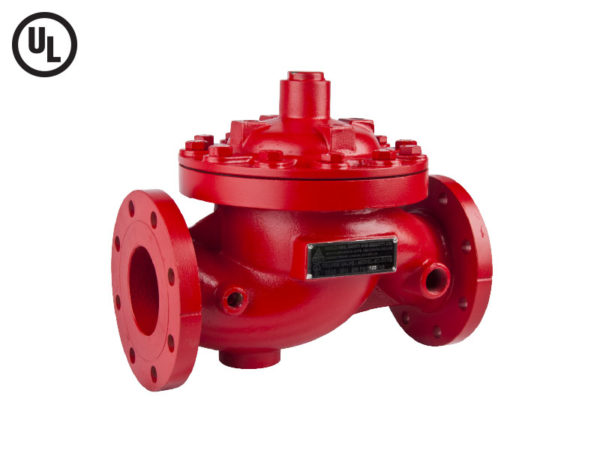

      SD-DVH3

        Deluge Valve is known as a system control valve in a deluge system, used for fast application of water in a spray system. Deluge valve protects areas such as power transformer installation, storage tank, conveyor protection and other industrial application etc. With the addition of foaming agent deluge valve can be used to protect aircraft hanger and inflammable liquid fire.

        Deluge Valve is known as a system control valve in a deluge system, used for fast application of water in a spray system. Deluge valve protects areas such as power transformer installation, storage tank, conveyor protection and other industrial application etc. With the addition of foaming agent deluge valve can be used to protect aircraft hanger and inflammable liquid fire.

        Specifications

        Nominal Size 200, 150, 100, 80 & 50NB
        Material Ductile Iron ASTM A536-77 Grade 65-45-12
        Maximum Working Pressure 1.4 to 17.5 Bar
        (20 to 250 PSI)
        Threaded Opening BSPT
        Mounting Vertical or Horizontal
        Factory Hydrostatic Test Pressure 35 Kg/sq.cm. (500 PSI)
        Flange Connection ANSI B 16.5 # 150 FF
        (RF-Optional)
        Wet Pilot Sprinkler As per graph in the catalogue
        Net Weight without Trim 200 NB – 153 Kg
        150 NB – 79 Kg
        100 NB – 50 Kg
        80 NB – 35 Kg
        50 NB – 32 Kg
        Finish RAL 3000
        Ordering Information 1. Size of Valve
        2. Flange specification
        3. Valve trim vertical or horizontal
        4. Trim type
