      CONVENTIONAL SPRINKLER

        MODEL: SD1025, SD1026

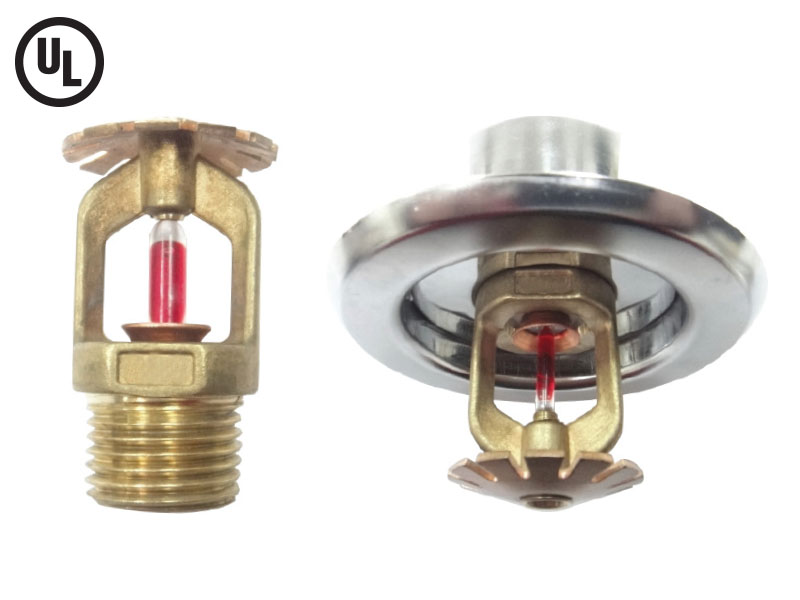

        The SHIELD Sprinkler, SD1025, SD1026 (Glass Bulb Type) ½” Orifice, Conventional sprinkler is designed for standard or recessed installation. The design incorporates state-of-the-art, heat responsive, frangible glass bulb design (standard or quick response) for prompt, precise operation. The die cast frame is more streamlined and attractive than traditional sand cast frames.

        It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a recessed escutcheon which provides up .” of adjustments. All sprinklers are manufactured using the time proven Belleville seal used exclusively by all major manufactures to ensure long life and safe operation.

        MODEL: SD1025, SD1026

        The SHIELD Sprinkler, SD1025, SD1026 (Glass Bulb Type) ½” Orifice, Conventional sprinkler is designed for standard or recessed installation. The design incorporates state-of-the-art, heat responsive, frangible glass bulb design (standard or quick response) for prompt, precise operation. The die cast frame is more streamlined and attractive than traditional sand cast frames.

        It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a recessed escutcheon which provides up .” of adjustments. All sprinklers are manufactured using the time proven Belleville seal used exclusively by all major manufactures to ensure long life and safe operation.

        Specifications

        Sprinkler Identification Number Standard SD1025 (bulb 5mm), Quick Response SD1026 (bulb 3mm)
        Style Conventional Sprinkler
        Finish Natural/Chrome
        K Factor 5.6gpm/psi½. (80lpm/bar½)
        Response Time Index (RTI) Standard 50 (m.s)½
        Quick Response 30 (m.s)½
        Nominal Thread Size ½”NPT(15mm)
        Orifice Size 13mm
        Max. Working Pressure 175PSI(1200kPa)
        Factory Hydrostatic Test 100%@500PSI(3450 kPa)
        Min. Operation Pressure 7 PSI(48 kPa)
