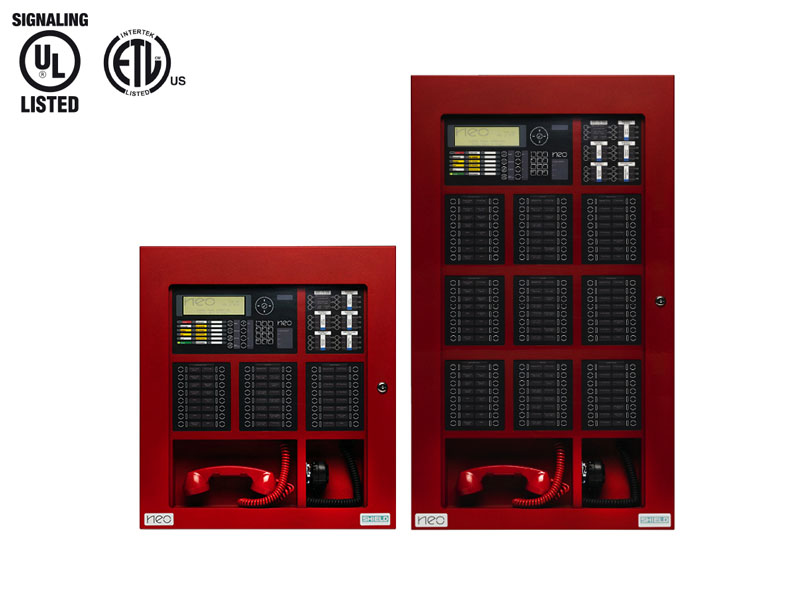

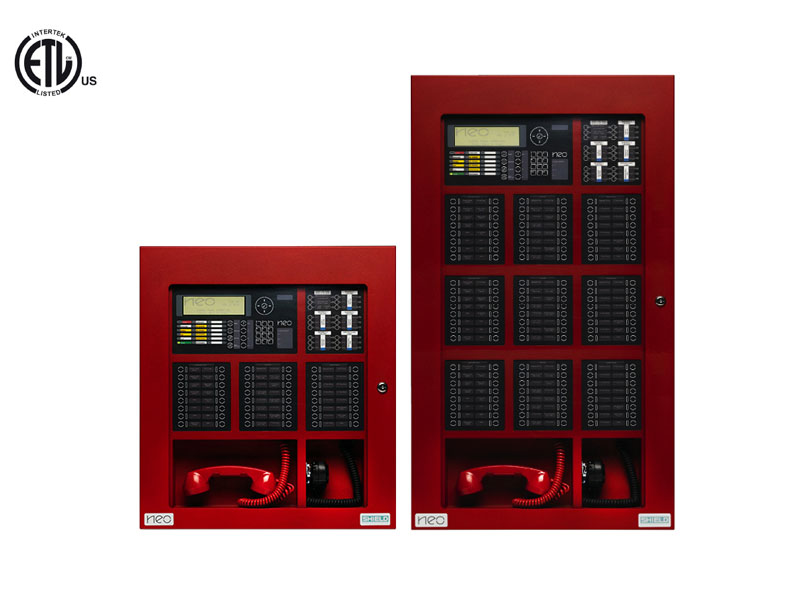

      Command Centers

        NEO Command Centers are built on the backbone of our intelligent fire panels to support a wide variety of configurations and applications.

        Command Centers can be configured in the factory or, as all elements are individually approved, supplied in modular format for easy expansion and customization. All of our Command Centers are fully compatible with audio and telephone options. Command centers can be configured for master control or peer-to-peer. Master control mode allows only one command center to manually operate audio and main system control functions. Telephone Riser Module can be mounted inside the Command Center or remotely within a separate Telephone Node for added security.

        • Order fully factory configured or in modular format for configuration on installation
        • 1, 2 or 4 Loops.
        • 126, 252 or 504 addressable points.

        NEO Command Centers are built on the backbone of our intelligent fire panels to support a wide variety of configurations and applications.

        Command Centers can be configured in the factory or, as all elements are individually approved, supplied in modular format for easy expansion and customization. All of our Command Centers are fully compatible with audio and telephone options. Command centers can be configured for master control or peer-to-peer. Master control mode allows only one command center to manually operate audio and main system control functions. Telephone Riser Module can be mounted inside the Command Center or remotely within a separate Telephone Node for added security.

        • Order fully factory configured or in modular format for configuration on installation
        • 1, 2 or 4 Loops.
        • 126, 252 or 504 addressable points.

        Features

        • Synchronization of audio and strobes across entire 200 node network.
        • 520Hz audio support.
        • Failsafe operation if loss of master Command Center.
        • Supports multiple “true peer to peer” Command Center operations.
        • Intuitive and easy for fire fighters to operate.
        • Audio confirmation LEDs indicate when speaker zones are active.
        • All Call, Page Evacuate, Page Alert & Page Inactive and Selective Paging features.
        • Manual activation of any message to any zone or group of zones.
        • No performance degradation as the number of network nodes expands.
        • Mass Notification and non fire “Warning” Options.
        • Integrated telephone annunciation (LED or LCD) and controls.
        • Powerful control-by-event programing with intelligent system test facilities provides superior system diagnostic and test functions.
        • Built-in network, AC power, aux power, battery and field wiring diagnostics.
        • Color coded slide in labels with large text to identify system functions.
        • Fire warden microphone.
        • PAS, 2-Stage, Alarm Verification and Event Mode.
        • Zone and Point Disable/Enable.
        • 1,000 system zones.

        Resources

        Download Datasheet
        Download User Manual
