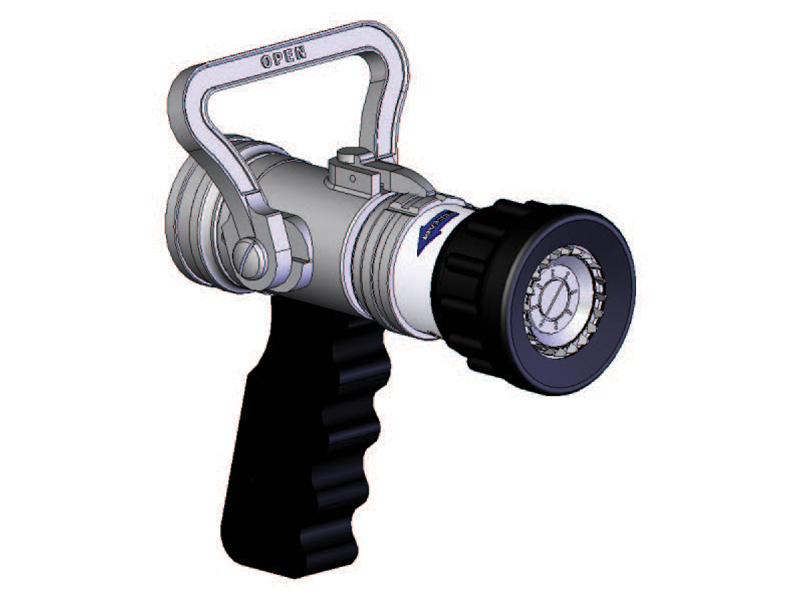

      Combination Nozzle

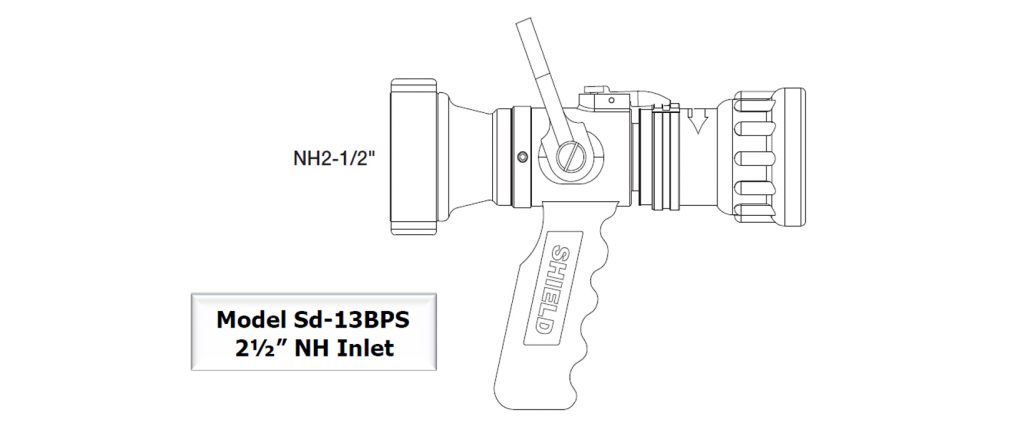

        Model: SD-13DBS, SD-13BPS

        SHIELD Fire has introduced their 40mm & 65mm water combination and adjustable nozzle. The nozzle is an adjustable pattern nozzle designed with the simplicity needed for indoor and outdoor applications. It’s simple twist operation takes you through shutoff, flow straight stream and fog.

        SHIELD Fire has introduced their 40mm & 65mm water combination and adjustable nozzle. The nozzle is an adjustable pattern nozzle designed with the simplicity needed for indoor and outdoor applications. It’s simple twist operation takes you through shutoff, flow straight stream and fog.

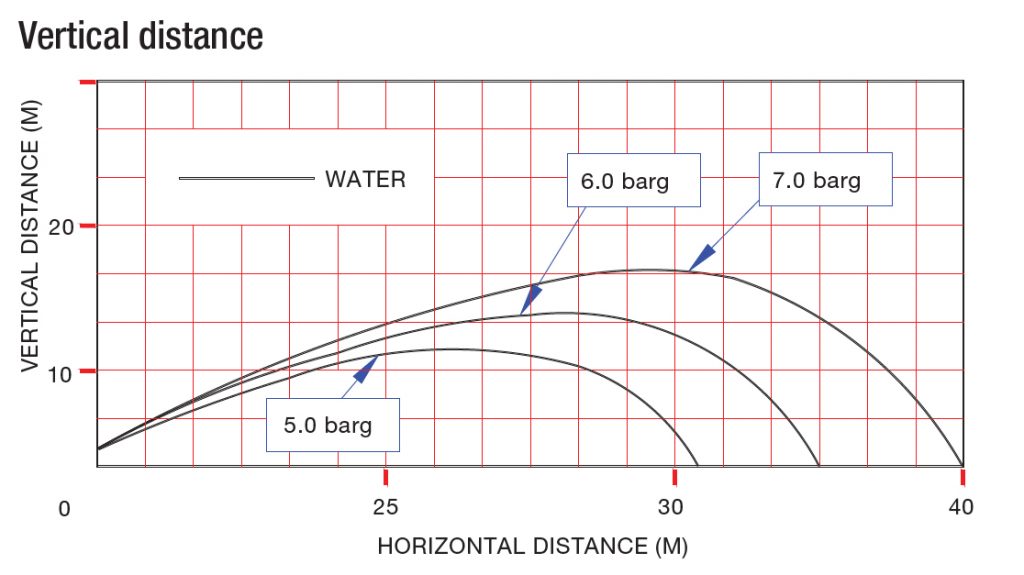

        • The effective reach : approx. 40 meters at full straight stream at pressure 7 Bar
        • Adjustable, Teflon impregnated neoprene seat with hydraulically balanced acetal ball
        • Hydro-test : 20 Bars
        • Normal working pressure : 7 Bars

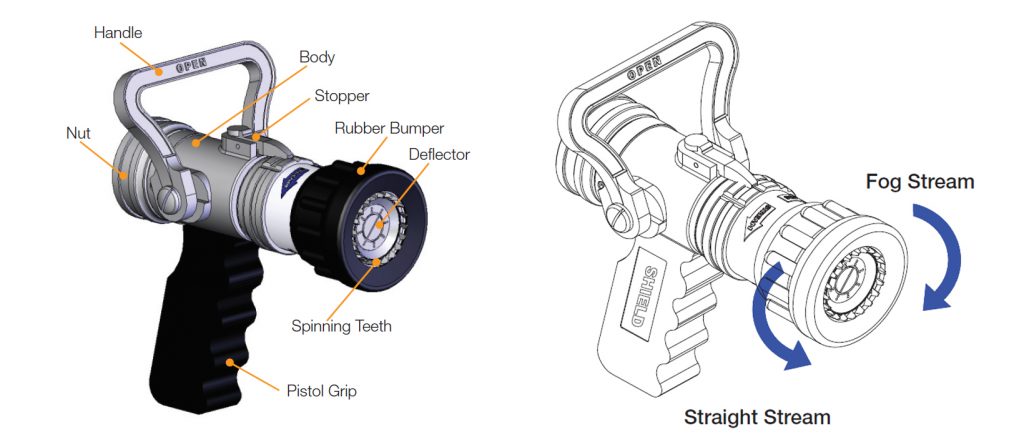

        Spinning teeth installed to make a fine fog and to extract smoke from the fire site.

        Features

        • Construction : durable lightweight ASTM 355.0
        • Fog, straight stream and shut-off
        • Inlet size : 1-1/2” NH swivel female or 2-1/2”
        • BS336 2-1/2” male is available.
        • Flow : 4-setting
          Inlet 1-1/2” 40-60-95-125GPM
          Inlet 2-1/2” 125-175-200-250GPM
        • Contain the spinning teeth to achieve better performance than standard nozzles in the firefighting condition.
        • Ship weight : approx. 1.6 kg 1-1/2” 3.0 kg 2-1/2”
        • Total length : 195 mm
        • c/w rubberized pistol grip and single stop shut-of f valve
