      BUTTERFLY VALVES, WAFER

        MODEL: SDBV-W, SDBV-W300 & SDBV-WTEC-175/200/250/300

        MODEL: SDBV-W, SDBV-W300 & SDBV-WTEC-175/200/250/300

        Specifications

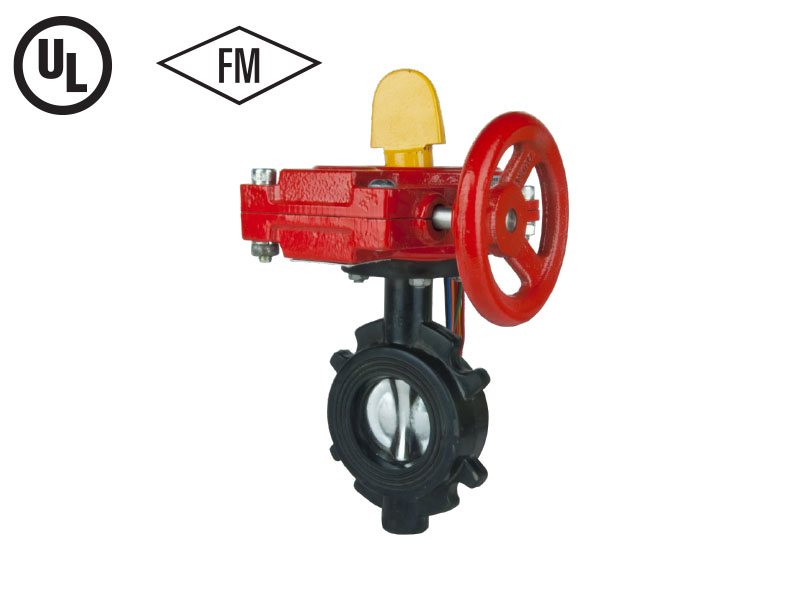

        MODEL: SDBV-W

        Size 2 ½” through 8”
        Working Pressure 175 psi
        Max. Test Pressure 350 psi
        Working Temperature 250° F (120° C)

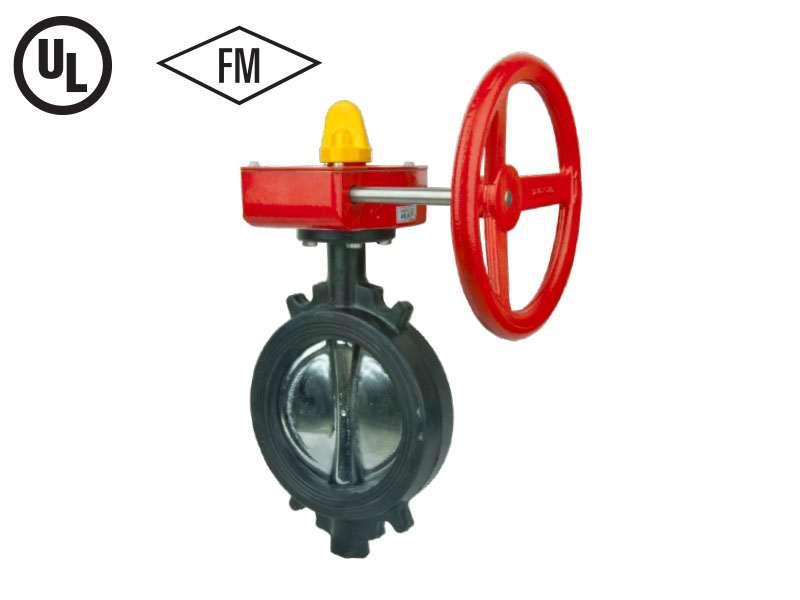

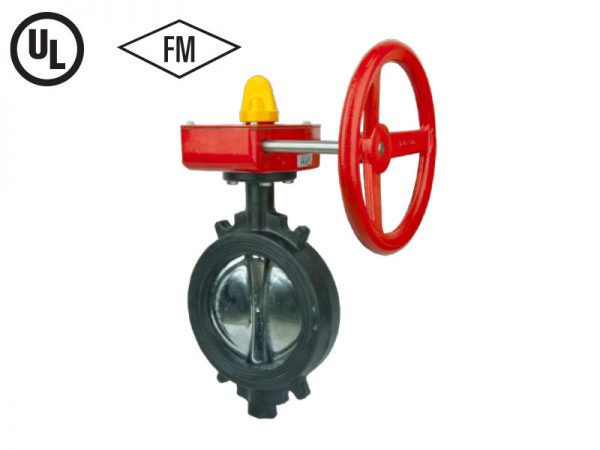

        MODEL: SDBV-W300

        Size 2 ½” through 8”
        Working Pressure 300 psi (21.5 Bar)
        Max. Test Pressure 600 psi (43 Bar)
        Working Temperature 250° F (120° C)

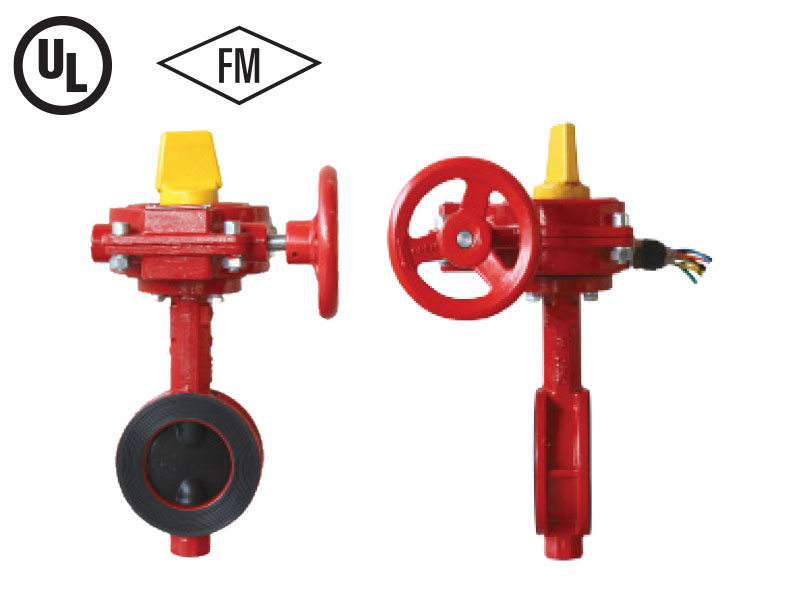

        MODEL: SDBV-WTEC-175/200/250/300

        Design Standard MSS SP-67
        Connection Ends ASME B16.1 CL 125,
        ASME B16.5 CL 150
        Top Flange Standard ISO 5211 Stem drive by keys, parallel or diagonal square or flat head
        With integrated tamper switch Yes
        Working Pressure 175 PSI / 200 PSI / 250 PSI / 300 PSI
        Temperature Range 0ºC – 80ºC
        Coating Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
