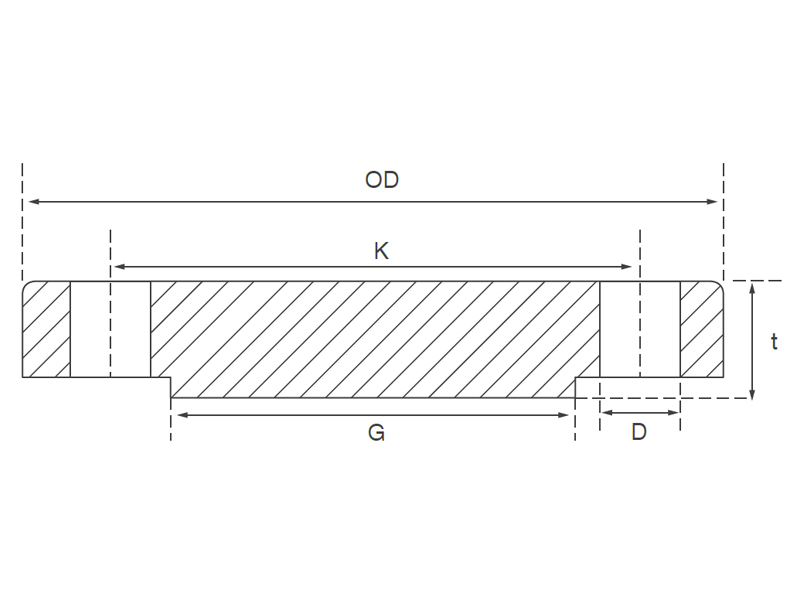

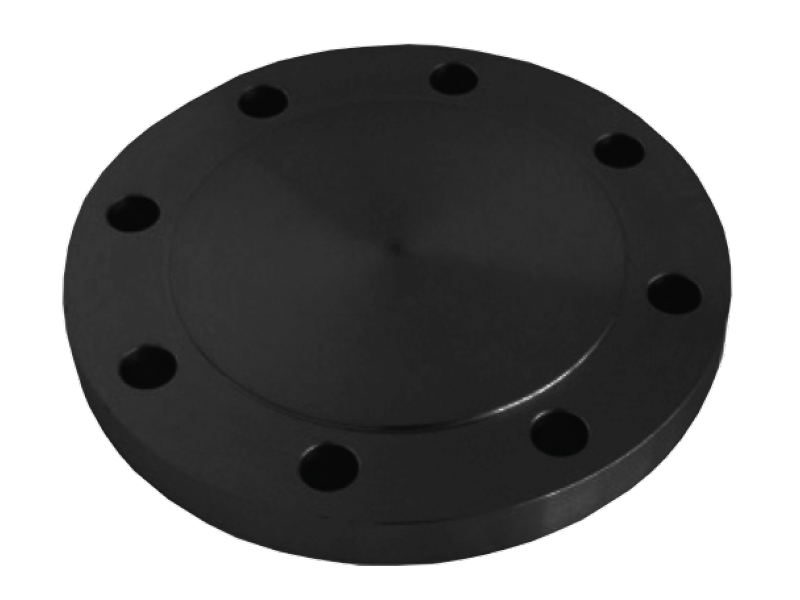

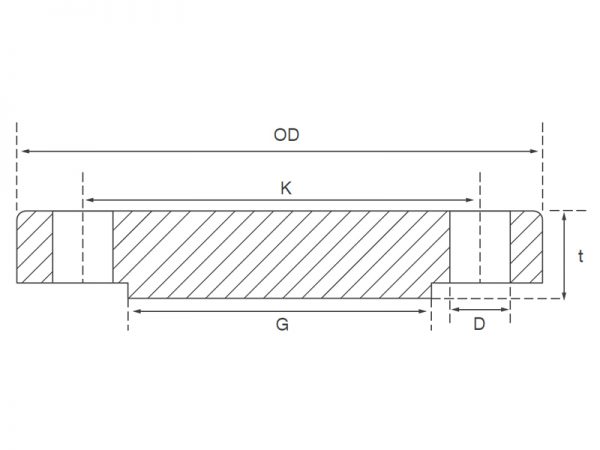

The Blind flange is manufactured using a bore (a round steel plate) with appropriate bolt holes. It is a highly stressed flange, however, most of the stresses are near the centre. It is suitable for high pressure applications. Blind flange is commonly used to close off end for piping system and pressure vessel openings.
Flanges are mainly used to connect valves, pumps and pipes to make a complete piping system. Flanges are classified into three types based on faces, Raised Face (RF), Flat Face (FF) and Ring-Type Joint Face (RTJ). The most commonly used type is Raised Face flange. Flanges can be connected to the piping system either welded or screwed. Flanged joints are fixed by bolting together, with a gasket in between where as required.
Material
Standard

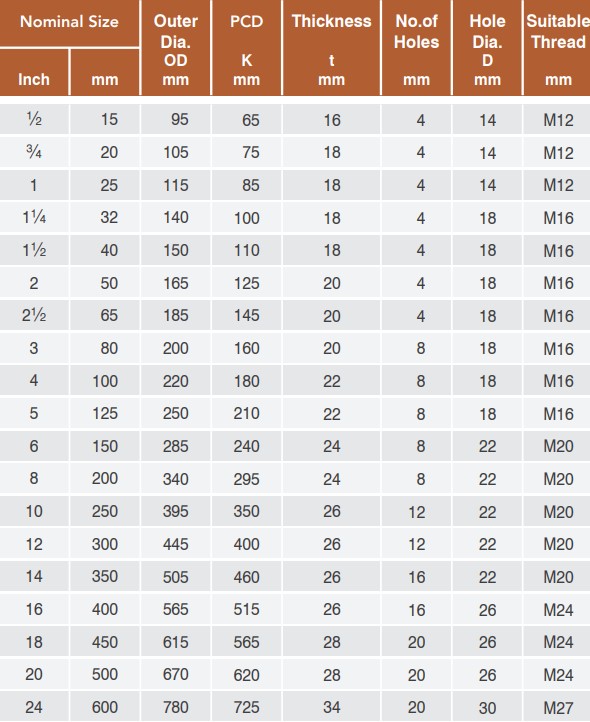

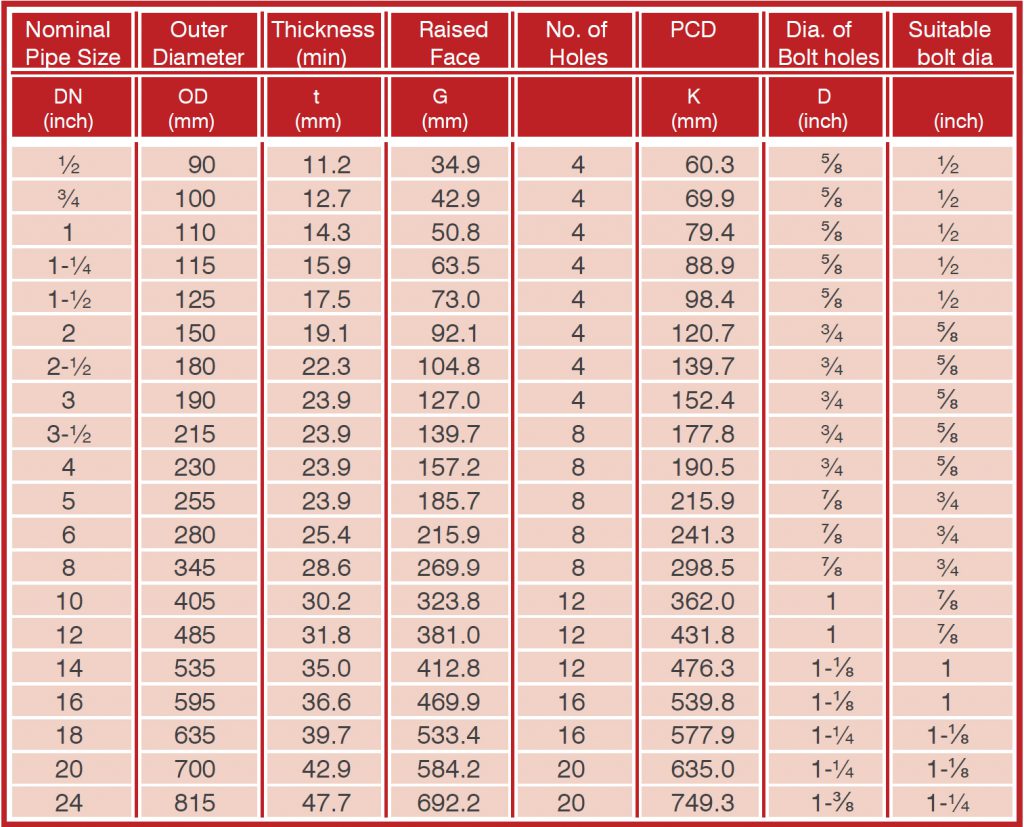

PN Chart
Note: SHIELD reserves the right to change the contents without notice.

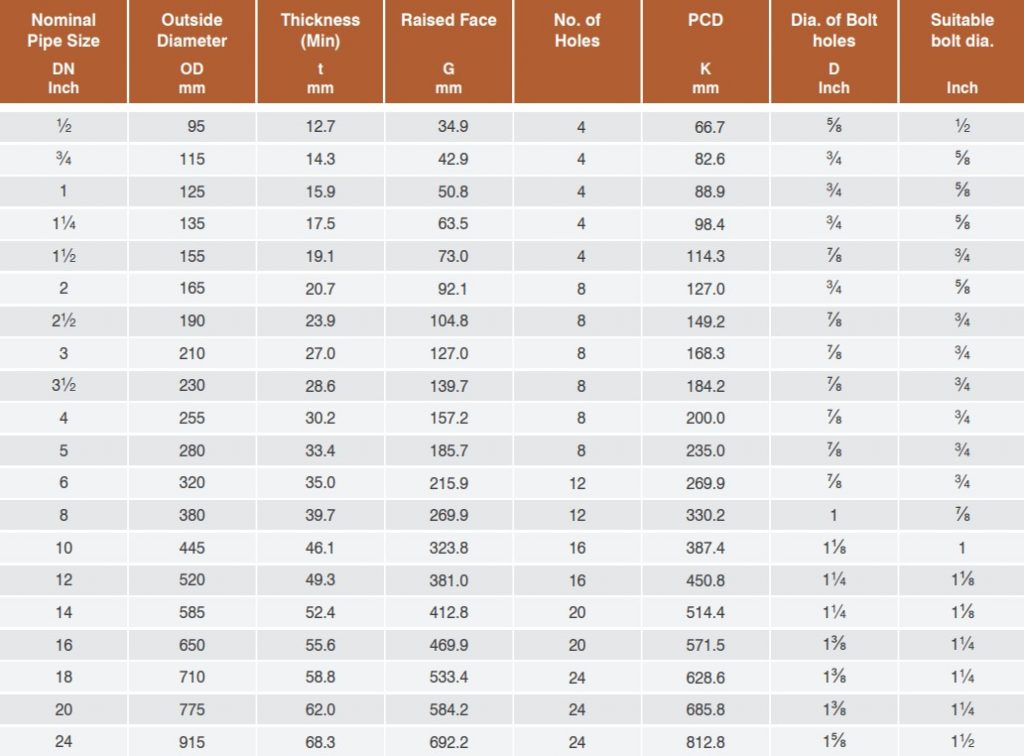

Standard

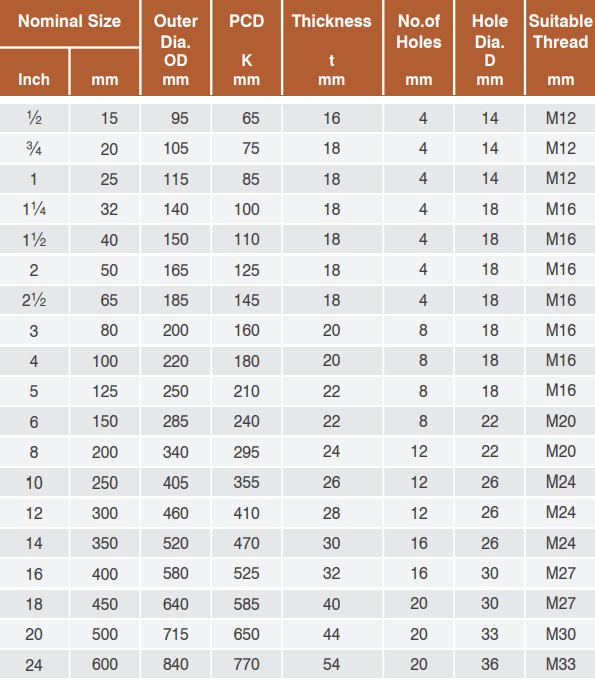

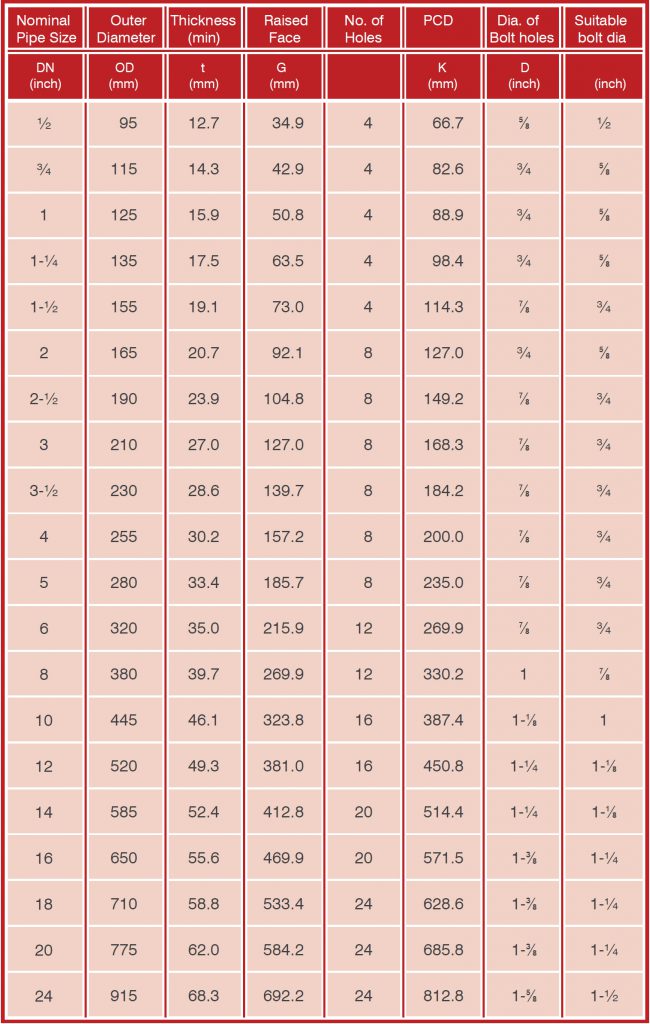

PN Chart
Note: SHIELD reserves the right to change the contents without notice.

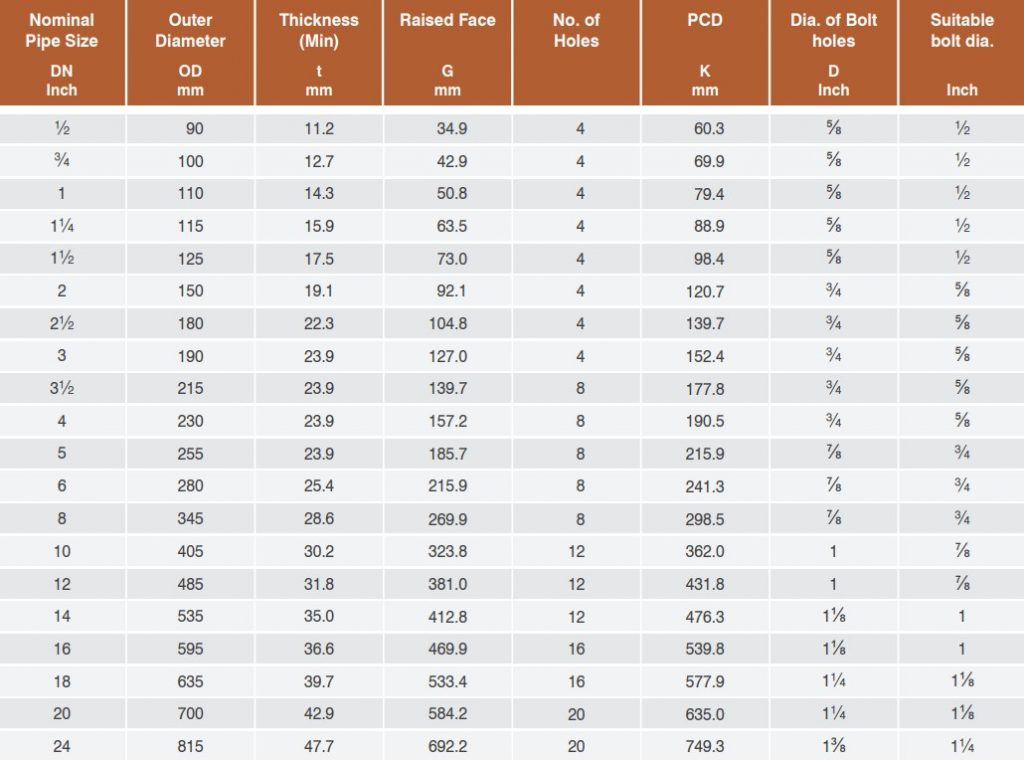

Standard

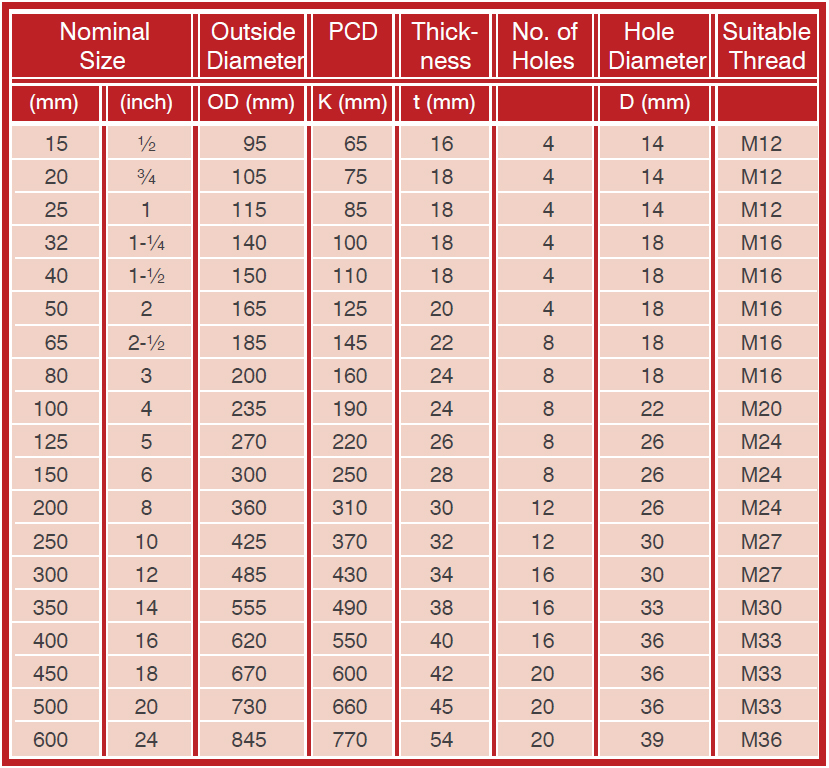

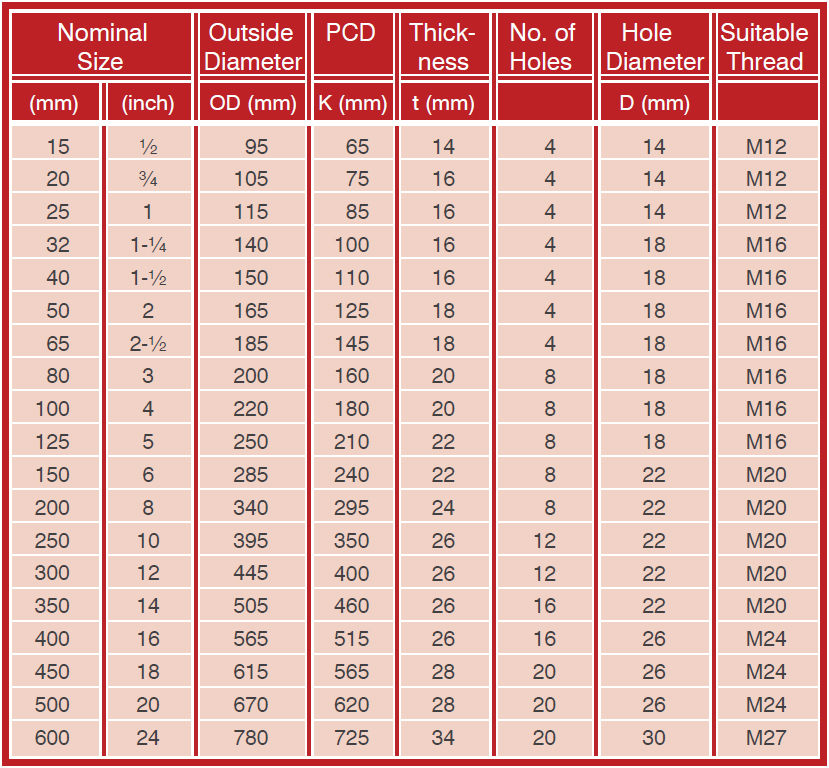

PN Chart
Note: SHIELD reserves the right to change the contents without notice.
Standard
Note: SHIELD reserves the right to change the contents without notice.
Standard
Note: SHIELD reserves the right to change the contents without notice.
