90° Elbow Long Radius

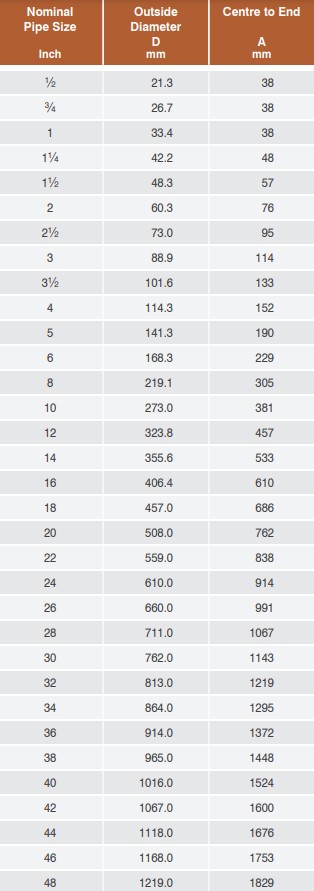

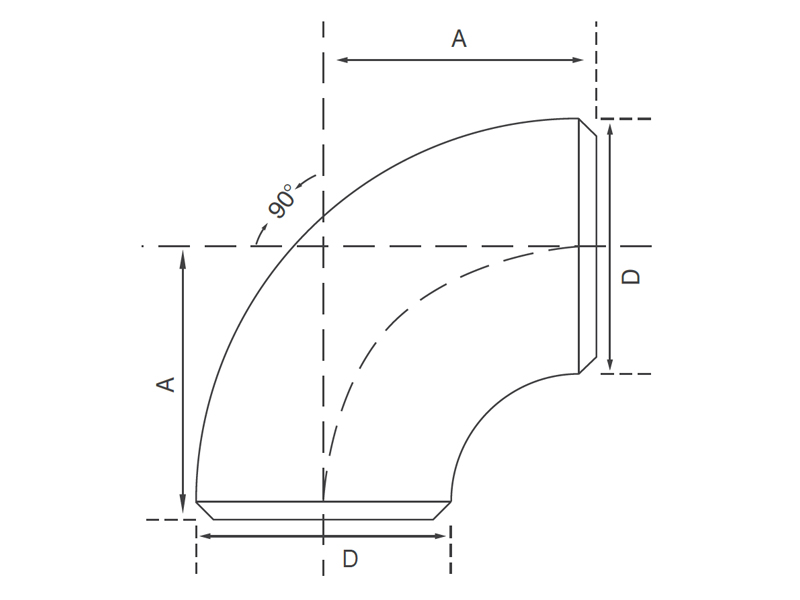

The function of the elbow is to change direction or flow in a piping system. Elbows are split as follows, the distance over which they change direction; the centre line of one end to the opposite face, this is known as the “centre to face” distance and is equivalent to the radius through which the elbow is bent.

Click here to download the catalogue
