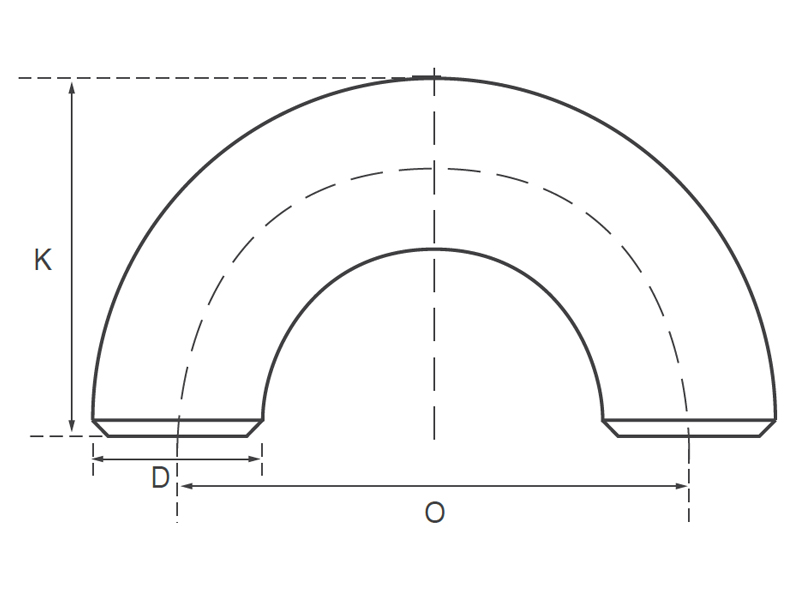

      180° Bend Long Radius

        Model : SD-BLRB 180
        The function of a 180° return bend is to change direction of flow through 180°. The long radius type has a centre to centre dimension double the matching 90° long radius elbow. The primary application for this fitting is in heater coils, heat exchangers and boilers etc.



        Model : SD-BSRB 180
        The function of a 180° return bend is to change direction of flow through 180°. The short radius type has a centre to centre dimension double the matching 90° short radius elbow. The short radius bend is less in cost and space consumption than long radius bend. The primary application for this fitting is in heater coils, heat exchangers and boilers etc.

        Click here to download the catalogue

        Butt-welded fittings are used in a piping system for changing direction, branching and to mechanically joined to the system. A piping system using Butt-welded fittings has many inherent advantages over other forms. Butt-welded fittings are used widely in high pressure and high temperature application.

        Material

        • ASTM A234 Grade WPB

        Dimensions

        • ASME B16.9

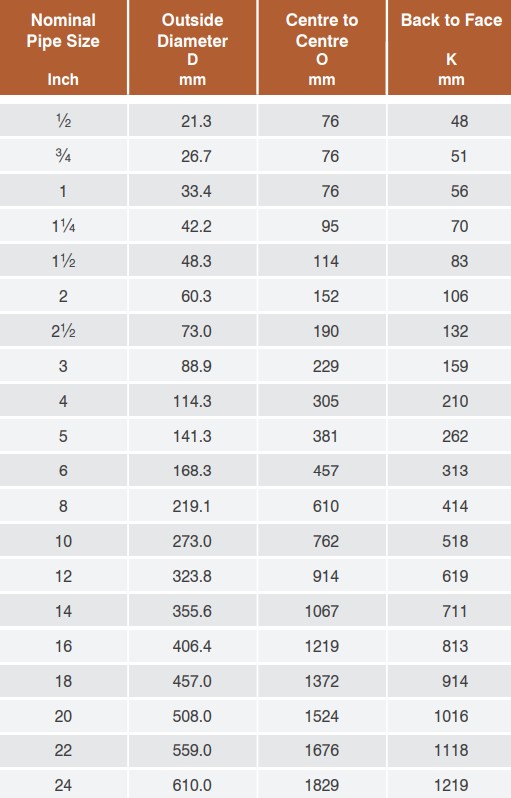

        SD-BLRB 180

        Note: SHIELD reserves the right to change the contents without notice.

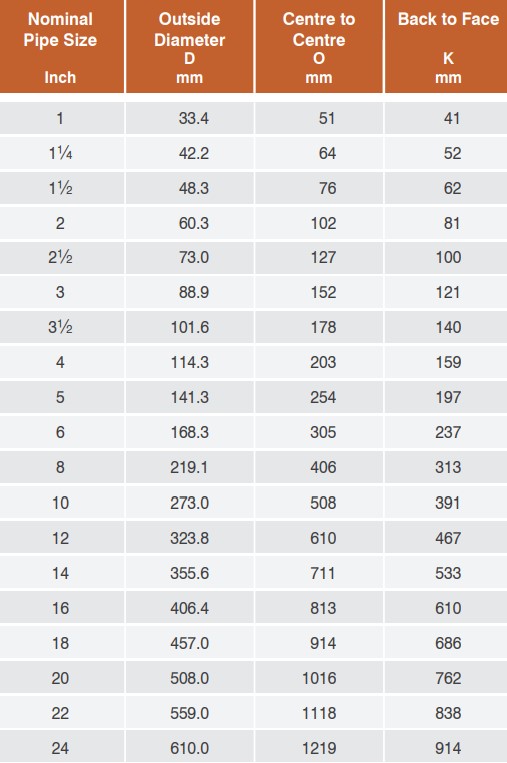

        SD-BSRB 180

        Note: SHIELD reserves the right to change the contents without notice.
