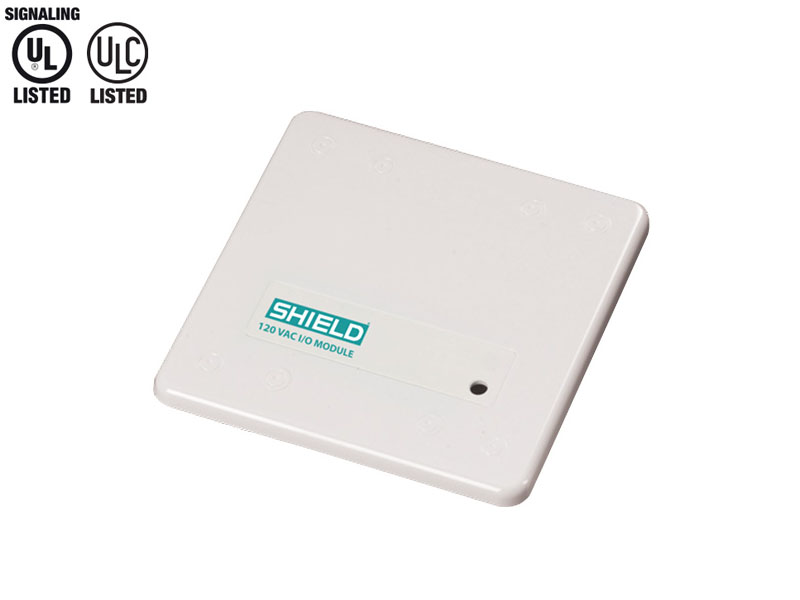

SHIELD 120V AC Input/Output Module is a loop powered device which incorporates a monitored input circuit for connection to dry contacts, as well as a 4A rated dry contact relay output.
SHIELD 120V AC Input/Output Module is a loop powered device which incorporates a monitored input circuit for connection to dry contacts, as well as a 4A rated dry contact relay output. It is mounted in a plastic facia plate for use with a 4″ square or 2 gang electrical back box.
| Type | 120 V AC Input/Output Module | |
|---|---|---|
| Style | Fascia Plate With Wiring Terminals | |
| Temperature Range | 0°C to 49°C | |
| Wiring Size | 24 AWG – 14 AWG | |
| Signal Line Circuit (SLC) | Supervised Power Limited | |
| Operating Voltage | 17 – 28 V DC 20-28 V DC (UL listed) |
|
| Modulation Voltage | 5 – 9 V DC (peak to peak) | |
| Operating Current | Supervisory Current at 17 V | <0.95 mA |
| Alarm Current at 17 V | <2.80 mA | |
| Supervisory Current at 28 V | <0.95 mA | |
| Alarm Current at 28 V | <3 mA (LED on) | |
| Maximum Alarm Current | <5 mA | |
| Functional States | Analog Level (normal) | 16 |
| Analog Level (alarm) | 64 | |
| Analog Level (trouble) | 4 | |
| Dimensions (L x W x D) | 114 mm x 114 mm x 25 mm | |
 |
